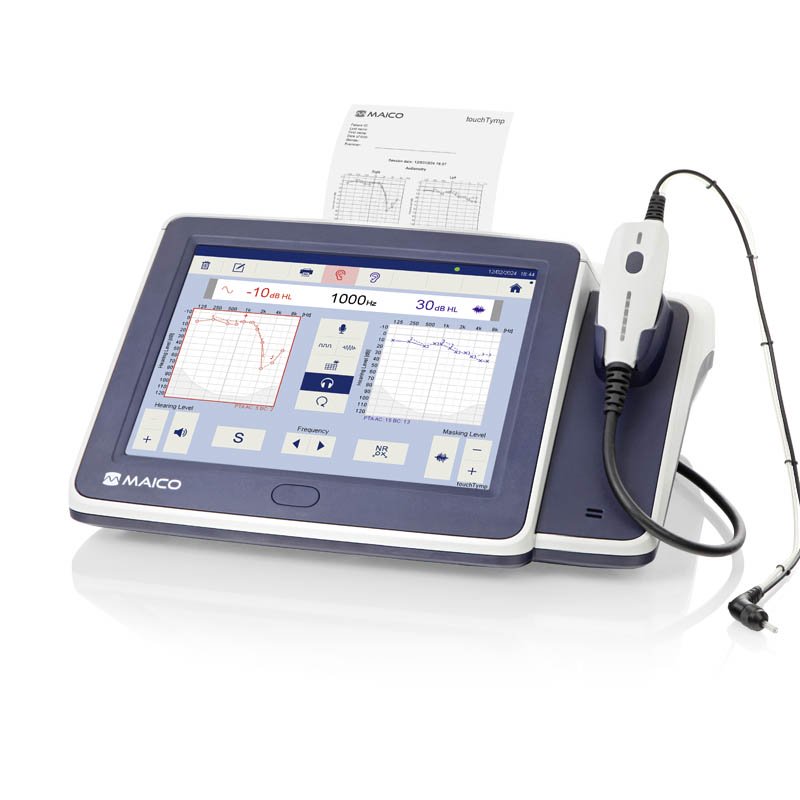

MAICO touchTymp MI 36

MAICO’s touchTymp MI 36 combines diagnostic middle ear analyzer and audiometry tests in one device. Quickly change tests without having to switch to another device — ideal for limited desk space. The full 10.4” touchscreen with its user-friendly interface lets you easily change parameters and select the desired test protocol.

touchTymp MI 36 comes with standard protocols for immediate operation of diagnostic and screening tests: tympanometry with 226 Hz, tympanometry with automatic or fixed acoustic reflexes, reflex decay, Eustachian tube function testing (ETF) plus air conduction and bone conduction audiometry. The optional high-frequency probe tone of 1 kHz is ideal for providing reliable results when testing newborns.

The device comes with a shoulder box probe which provides a real-time progression of the immitance test. The light indicator on the probe shows you which ear is tested and the test result. Clip the shoulder box to your patient’s top for controlled handling.

NZ Medsafe ID: 180418-WAND-6Q65WQ

  • touchtymp_mi_36_6_800x800
  • touchtymp_mi_36_5_800x800
  • touchtymp_mi_36_4_800x800
  • touchtymp_mi_36_3_800x800
  • touchtymp_mi_36_2_800x800
  • touchtymp_mi_36_1_800x800
  • touchtymp_mi_36_800x800
Get a quote

Features and downloads

  • Screening and diagnostic tests in one device
  • Comes with lightweight shoulder box probe
  • Probe tone 226 Hz, 678 Hz, 800 Hz
  • Acoustic reflex stimuli 500 Hz,1 kHz, 2 kHz, 4 kHz, BB, HP, LP (ipsilateral and contralateral)
  • Reflex Decay test (ipsilateral and contralateral)

Learn more about touchTymp MI 36
Download Datasheet
